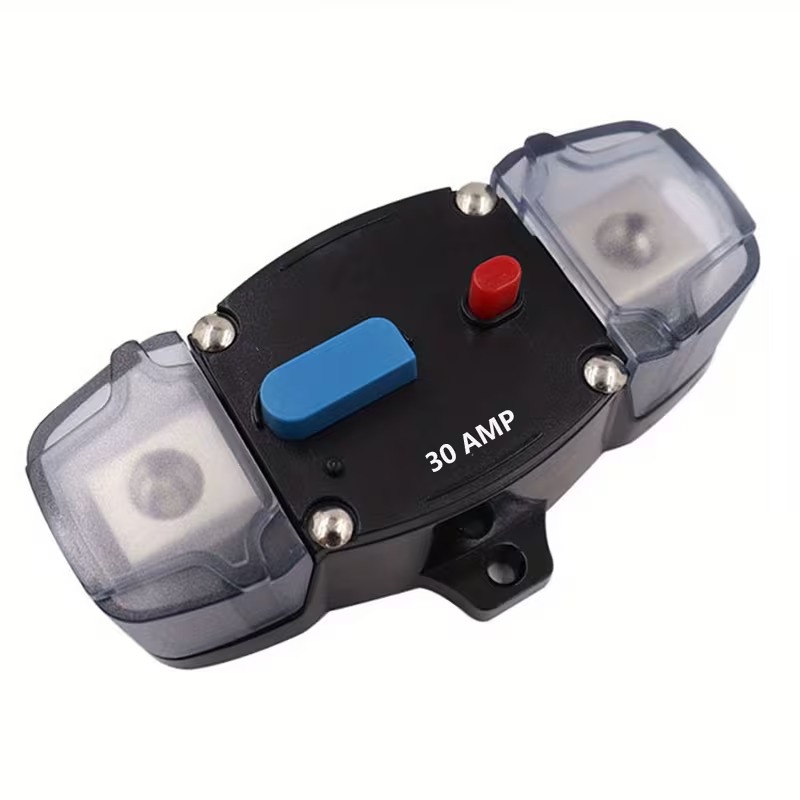

30A Automatic Reset Circuit Breaker

A compact automatic reset circuit breaker designed to protect compatible DC electrical circuits from overload conditions. It operates across a 12V–48V DC range, making it suitable for automotive, marine, RV, trailer, and low-voltage accessory wiring. The automatic reset function allows the breaker to restore the circuit after the overload condition is removed, reducing the need to replace fuses during routine troubleshooting.

Protection Profile
Rated current: 30A
Voltage range: DC 12V–48V
Reset type: Automatic reset
Function: Overload circuit protection
Mounting style: Panel or surface mount with screw holes

Build Details
Housing: Insulated protective body
Terminal covers: Transparent end caps for connection protection
Button design: Manual test/control button layout
Use type: Reusable circuit protection device

Suitable Applications
Cars, trucks, boats, RVs, trailers, audio systems, auxiliary lighting, battery circuits, winch accessories, and general low-voltage DC power distribution.

Use Note
Verify current rating, voltage range, cable size, terminal fit, and load requirements before installation. Install with proper circuit protection planning and secure wiring connections.
